MCC Pin Module Setup

Pin Module

Now close the Pin Manager: Grid View. Click on the Pin Module under Project Resources.

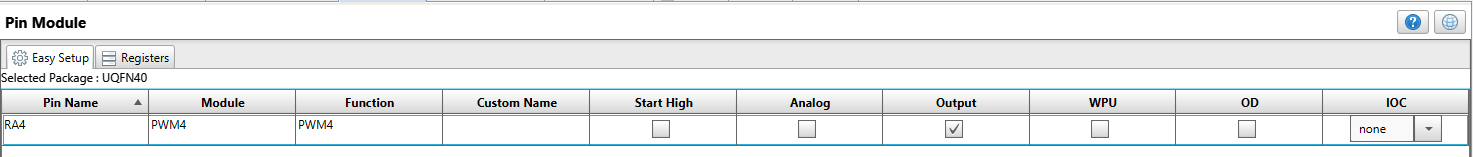

The center screen will show RA4 listed on the I/O chart. Click on the Output box to make the pin an output (if not checked) and make sure Analog and WPU are not checked (click on them to uncheck them).
